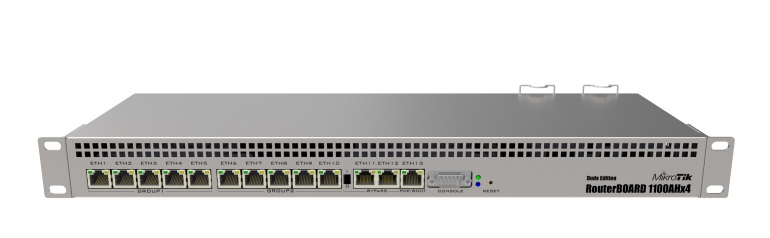

Router Mikrotik RB1100AHx4
- The new RB1100AHx4 series of devices uses a new quad core Cortex A15 chip from Annapurna labs, an Amazon company, The chip is clocked at 1.4 GHz, for a maximum throughput of up to 7.5 Gbit.
- Two models are available, with the RB1100AHx4 Dude edition featuring several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. The Dude edition includes a 60GB M.2 drive already installed.
- The devices support IPsec hardware acceleration and are faster at it than any previous RouterBOARD device.
- The RB1100AHx4 feature two IEC failover power connectors, support 802.3at PoE input and also have a DC telecom power connector for -48VDC powering.
Thông số kỹ thuật
| Product code | RB1100AHx4 |
| CPU | AL21400, 4 cores, 1.4 GHz |
| Size of RAM | 1 GB |
| Storage type | NAND |
| Storage size | 128 MB |
| 10/100/1000 Ethernet ports | 13 |
| Ethernet bypass | Ethernet 11/12 |
| Power jack | 2x IEC. 100 V - 240 V |
| DC telecom power | 20 V - 57 V (-48 V supported) |
| PoE input | Passive, 802.3at. 20 V - 57 V |
| Redundant power supply | Yes |
| Voltage monitor | Yes |
| PCB temperature monitor | Yes |
| Current monitor | Yes |
| Dimensions | 444 x 148 x 47 mm |
| Operating temperature | -40°C .. +70°C tested |
| Operating system | RouterOS, level 6 license |
| Max Power consumption | 20 W |
| microSD | 1 |
| Serial port | RS232 |
| Beeper | Yes |
- Bảo hành: 12 tháng.
